| Item | Height | Length | Width |
| Size | 2450 | 1840 | 1390 |
| Item | Parameter |
| Rated capacity (KVA) | 330 |
| Power supply (V/φ/HZ) | 380/ 3 /50HZ |
| Primary current (A) | 240 |
| Rated duty cycle (%) | 20 |
| Secondary empty voltage (V) | 13 |
| Throat depth (mm) | 290 |
| Arm gap (mm) | 490 |
| Cylinder stroke(mm) | 150 |
| Electrode Dimensions (mm) | φ30X60 |
| Workpiece Dimensions (mm) | φ30X30 |
| Welding speed m/min (s/piece)(time/s) | 4s/piece |
| Max. working pressure (kgf) | 2000 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Cooling water consumption (L/MIN) | 12 |
| Compressed servo motor power (KW) | 3.5 |
| Primary cable specification (MM2) | 3*50+2*16 |
| Max. Short Circuit Current of transformer (A) | 58000 |

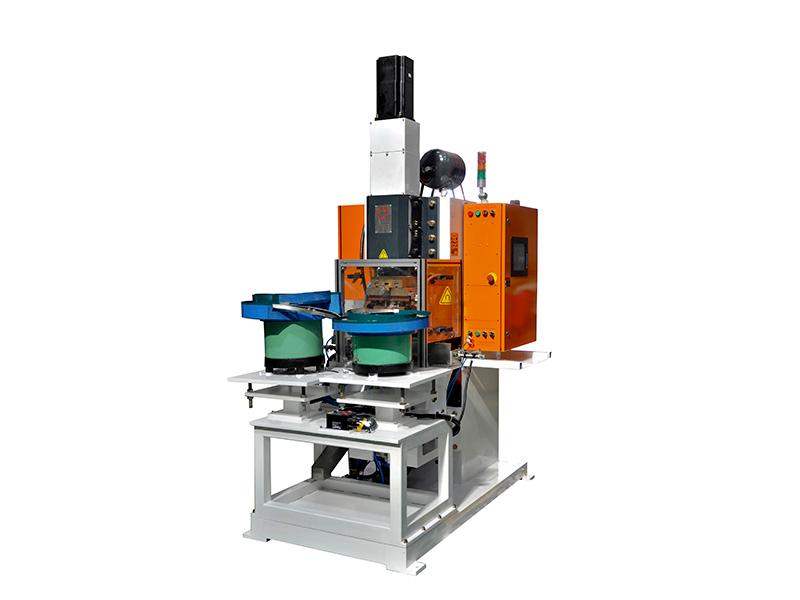

Feature of automatic welding machine for car wheel fastener
1. The automatic welding machine for car wheel fastener comes installed with a 330KVA Heron medium frequency DC power supply.
2. The welding system is outfitted with dual automatic loading systems.
3. The welding machine is equipped with a servo driven electric cylinder compression system.
4. Comes with a complete automatic assembly fixture system.
Introduction

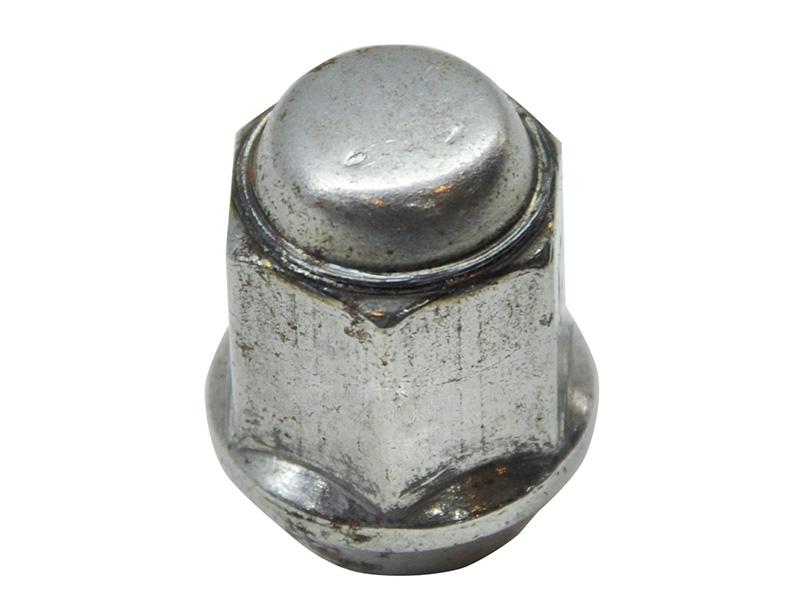

The automatic welding machine for car wheel fastener is constructed for the head welding of car wheel nuts and it is outfitted with a 440KVA Heron medium frequency DC power supply. It is also outfitted with a dual automatic loading system and an automatic assembly fixture system. The welding system is designed to replace traditional manual welding processes and improve safety and maximize efficiency.
